-70%

Tie Rod

Original price was: $28.92.Current price is: $8.68.

SKU: SK0174185-A Category: Axle And Steering

Description

Description

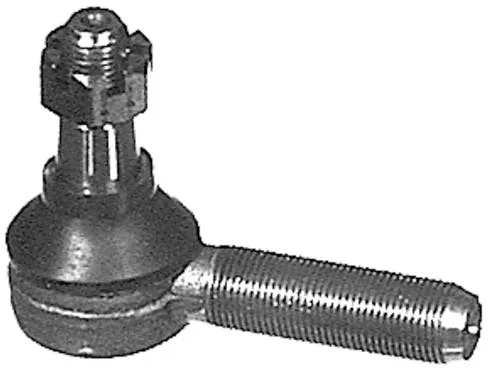

Tie rod end, inner .687 inch- 18 RH thread, 3-1/8 inch to center of post. Used on tie rod assemblies with notched outer end threaded inner end. For swept back adjustable axles. 48 inch to 80 inch on Tractors: 385, 395, 484 (w/ 1-11/16 inch outside diameter spindle post), 485, 574, 584, 594. 56 inch to 76 inch on Tractors: 2400A, 2500A. For straight adjustable axles. 48 inch to 80 inch on Tractors 574. 52 inch to 80 inch on Tractors: Hydro 84, 385, 484, 485, 584, 684, 784, 884. 54 inch to 78 inch on Tractors: 674. Three position axle on Tractors: 2400A, 2500A.

Diameter: 0.687
For Make: International Harvester
Length: 3.062
Thread: 18 Right Hand Thread

This item is a suitable alternative for the following:
527658R91, A527658R91, A-527658R91, 844926

Tie Rod

Original price was: $37.27.Current price is: $11.18.

SKU: SK0172518-A Category: Axle And Steering

Description

Description

Tie rod end, outer, recess for set screw (7) at bottom, 15 inch to center of post, .812 inch rod dia. Used on tie rod assemblies w/set screw recess outer end and threaded inner end. For straight adjustable axles. 52 inch to 80 inch on Tractors: Hydro 84, 385, 395, 396, 484, 485, 495, 584 (except utility with HD axle), 684, 784, 884. 52 inch to 82 inch on Tractors: 595, 685, 695, 885, 895, 995 (with high spindles).

Diameter: 0.812
Length: 15

This item is a suitable alternative for the following:
3116406R3, 3116406R91, 844977, A-3116406R3, A3116406R3

Tie Rod

Original price was: $74.97.Current price is: $22.49.

SKU: SK0170607-A Category: Axle And Steering

Description

Description

Tie rod end, left hand, slotted, 32.843″ to center of post, .937″ O.D., includes boot & grease fitting. For semi-swept adjustable axle. Tractors: MF230 (s/n 9A243032 & up), MF245 (including vine & narrow orchard). Industrial: 20C turf.

For Make: Massey Ferguson

This item is a suitable alternative for the following:
1048272M91, 1048272M92, 1048272V92, 741841, A-1048272M91, A1048272M91

Tie Rod

Original price was: $53.95.Current price is: $16.18.

SKU: SK0167774-A Category: Parts

Description

Description

Tie rod end, outer, notched (9), 19-5/8″ to center of post. For models with wide adjustable & all-purpose axles. Tractors: 8200, 8600, 9200, 9600 (1968 to 7/1976).

For Make: Ford_New Holland

Tie Rod

Original price was: $36.72.Current price is: $11.02.

SKU: SK0163240-A Category: Parts

Description

Description

1/2 Inch Diameter Thread Size on Ball Joint End. Please Measure Thread Size Before Ordering. Used with OEM Steering Arms 405833R1 (LH) and 405834R1 (RH).

Diameter: 0.75
For Make: International Harvester
Length: 16
Notches: 7 Notches
Thread: Thread Size – 1/2″

Tie Rod

Original price was: $35.58.Current price is: $10.67.

SKU: SK0163201-A Category: Parts

Description

Description

Tie rod end, outer, notched (6) on bottom, 13-3/4″ to center of post, .750″ rod dia. Used on tie rod assemblies with notched outer end and threaded inner end. For swept back adjustable axles 44″ to 72″. Tractors: 454, 464.

For Make: International Harvester

Tie Rod

Original price was: $38.59.Current price is: $11.58.

SKU: SK0163222-A Category: Parts

Description

Description

Use with 405837R1 Right Hand Steering Arm and 405836R1 Left Hand Steering Arm. Note: Measure Thread Size on Ball Joint End Before Ordering.

Diameter: 0.75
For Make: International Harvester
Length: 16
Notches: 7 Notches on Bottom
Thread: Thread Size on Ball Joint End – 0.5625″

Tie Rod

Original price was: $20.28.Current price is: $6.08.

SKU: SK0161932-A Category: Parts

Description

Description

Tie rod end, inner, .875 inch- 16 RH thread, 3-7/8 inch to center of post. Used on tie rod assemblies with set screw recess outer end & threaded inner end. For swept back adjustable axles. 48 inch to 80 inch on Tractors: 395, 396, 495, 595, 685, 695, 885, 895, 995. For straight adjustable axles. 52 inch to 77 inch Tractors: Hydro 84, 595, 684, 685, 695, 784, 884, 885, 895, 995. 52 inch to 80 inch on Tractors: Hydro 84, 385, 395, 484, 485, 495, 584, 584 utility (w/HD axle), 594, 684, 784, 884. 52 inch to 82 inch on Tractors: 595, 685, 695, 885, 895, 995.

Diameter: 0.875
Length: 3.75
Thread: Right Hand 16 Thread

Tie Rod

Original price was: $24.51.Current price is: $7.35.

SKU: SK0161022-A Category: Parts

Description

Description

Tie rods end, threaded, RH threads, 4 inch to center of post. For row crop adjustable front axles with power steering except narrow. Tractors: White F B2-70, FB2-85 (s/n 263341 to 284964), FB2-105 (s/n 255216 to 285182); Oliver: 1555, 1655, 1755, 1855, 1955. Replaces 164366A, 25-1004897.

Diameter: 0.937
Length: 18.75
Notches: 15 Notches on Top

Tie Rod

Original price was: $19.39.Current price is: $5.82.

SKU: SK0162102-A Category: Parts

Description

Description

Tie rod end, inner, threaded (Right hand), 3-1/8 inch to center of post, .687 inch- 18 thread. Used on tie rod assemblies with notched outer end and threaded inner end. For swept back adjustable axles 44 inch to 72 inch. Tractors: 454, 464. (48 inch to 80 inch). Tractors: 454, 464, 484 (with 1-7/16 inch O.D. spindle post, 45 inch to 61 inch). Tractors: 424, 444. 49 inch to 69 inch. Tractors: 424, 444. Also used as an outer tie rod end on models with swept back axles. Tractors: 330, 340, 404. Models with straight axles. Tractors: Supers A & A1 (s/n 318310 & up), Super AV & AV-1 (s/n 318914 & up), C, Super C, Cub Lo-Boy (with 105 mower), 100, 130, 140, 404, 504.

Diameter: 0.687
For Make: International Harvester
Length: 3.062
Thread: 18 Right Hand Thread
